Matrix Fundamentals in LabVIEW

Here is another good example:

The following example shows the fundamental behavior and functionality of the matrix data type. While the test is running, you can change the matrix inputs or select built-in or user-defined numeric operations. Change the operation mode between matrix and array versions of the operations to see the difference in results.

The front panel:

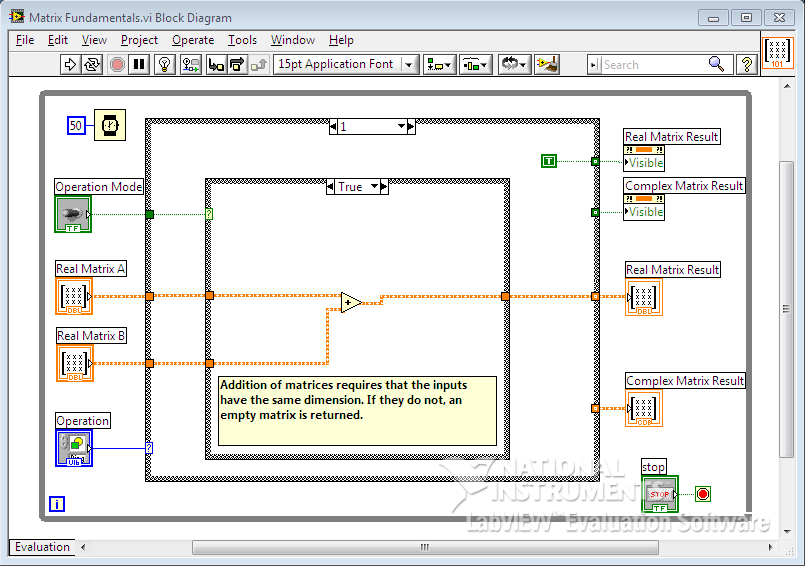

The block diagram:
